German-built PTG Tyre Inflation systems are supplied and fitted at Ag and Civil Machinery Direct.

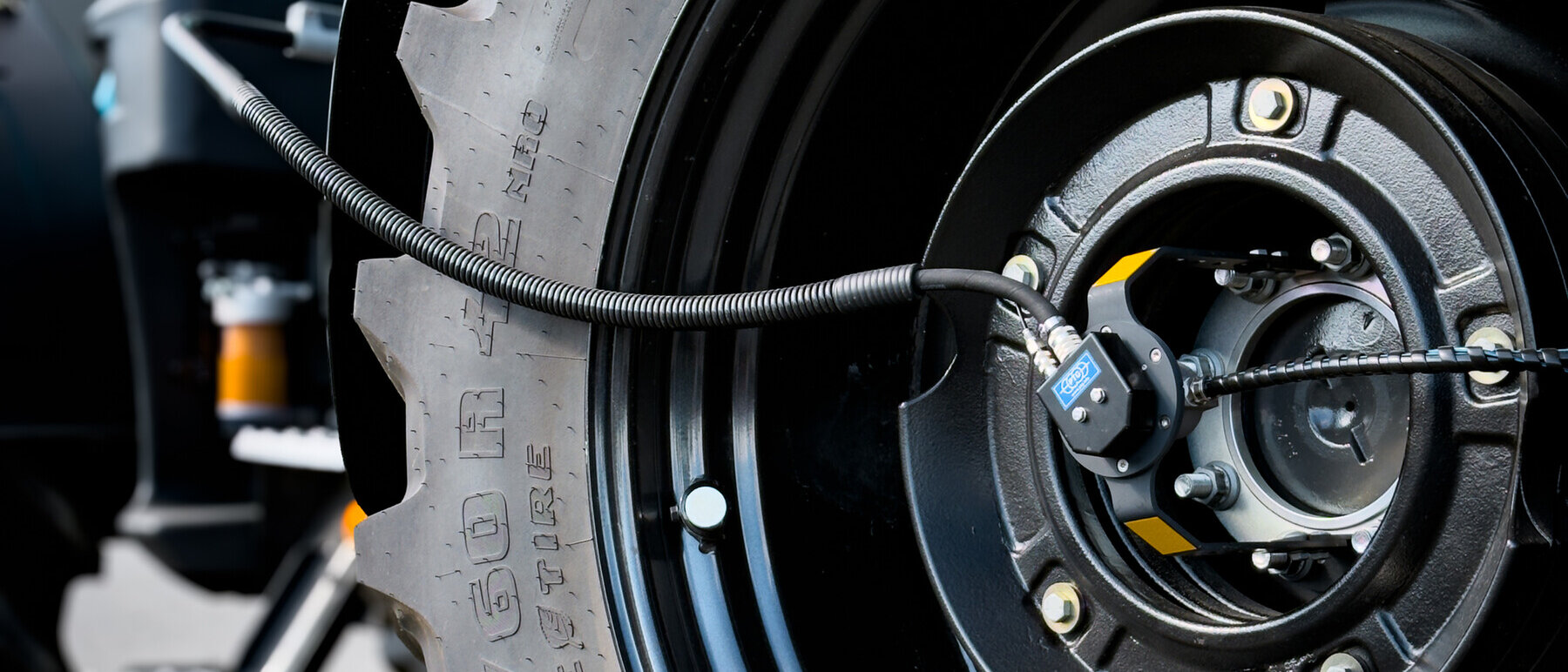

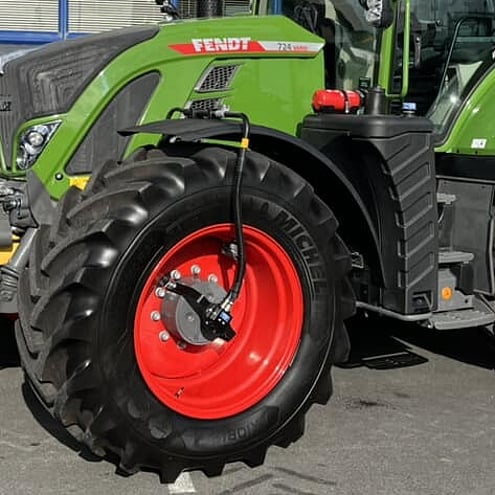

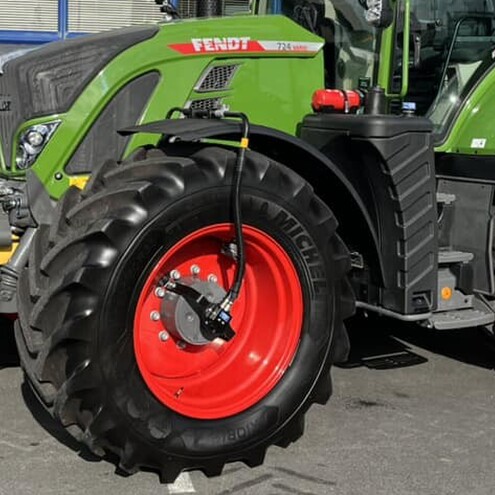

Dual line tyre inflation system for tractors

Advantages to the dual line technology

  • up to 20 % less tyre wear

    • up to 10 % less fuel consumption

    • up to 20 % more traction power

    • up to 6 % more yield

    • Maintenance-free rotary unions, no greasing needed

    • Tough and durable rotary unions thanks to special seals

    • Line system at zero pressure when switched off

    • Switchable tyre valves with anti-kickback attachment (i.e. no manually activated ball valves in the rims)

    • No loss of tyre pressure if the line comes off

    • Long life of rotary unions (only under pressure during adjustment)

    • Lines may be disconnected after use

    • Maximum user comfort thanks to digital control

Air Supply Systems for Tractors

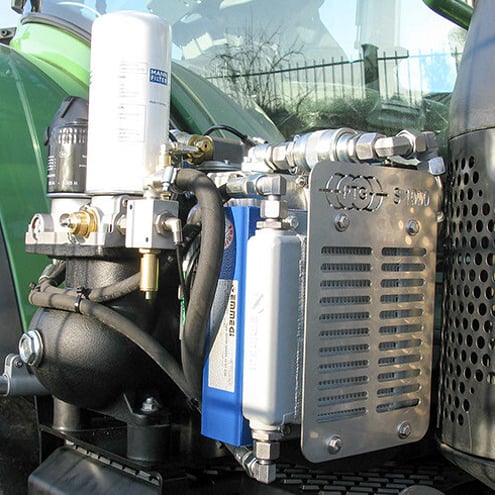

The hydraulically powered S1000 compressor is used on tractors where tyre inflation using the tractor’s standard air compressor takes too long. The unit especially features a compact design and a minimal power requirement.

  • Rotary screw compressor with oil radiator: 7.5 bar (110 psi)

  • Powered by an axial piston motor

  • Effective delivery performance: 800 – 1000 L/min at 2 bar (29 psi) resistance

  • Oil capacity: 5L

  • Oil requirement of the hydraulic motor: approx. 35 L/min

Contact us for options and pricing
